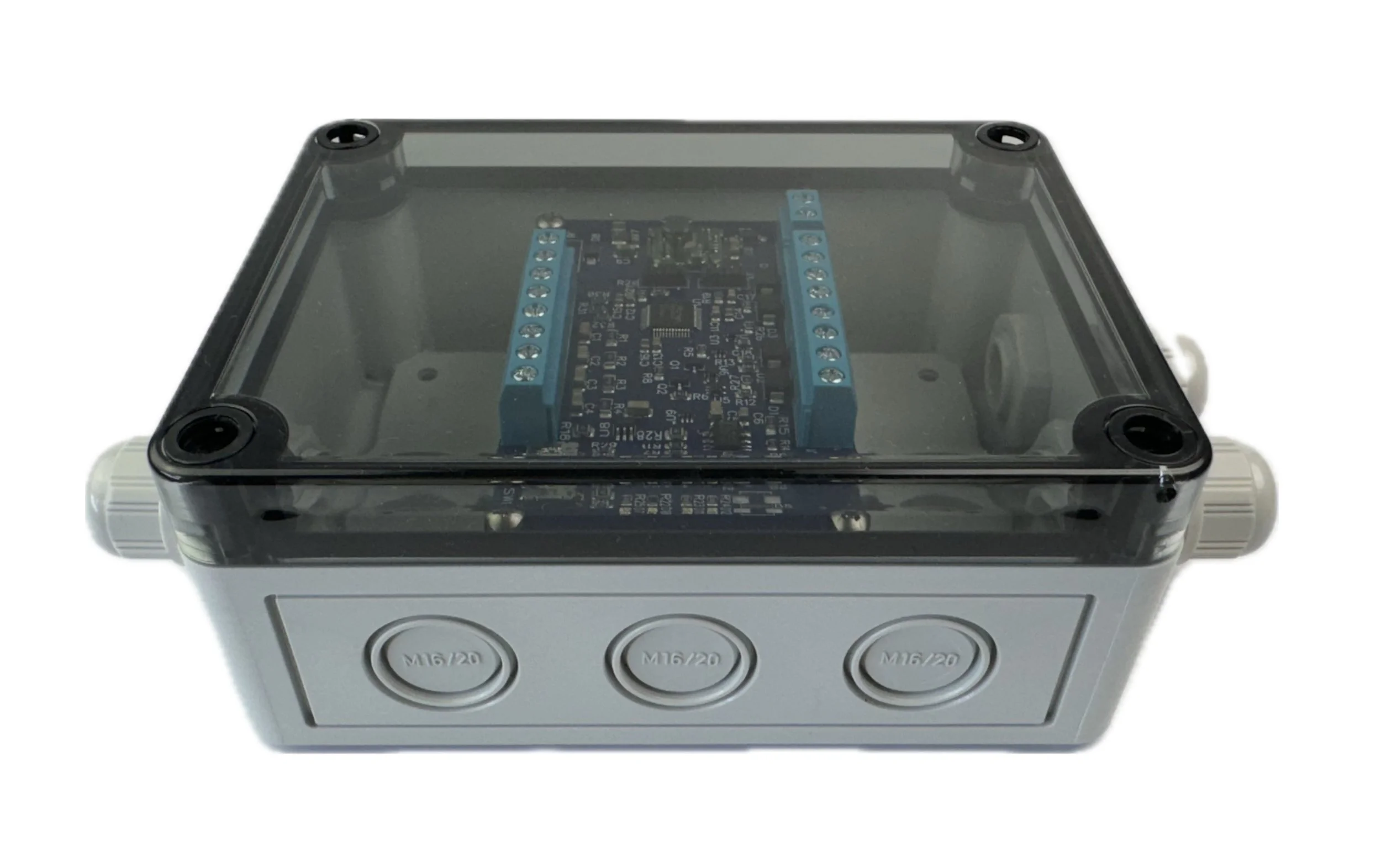

THH0C4SE01 - Dust tight, waterproof, IP66, 4 channels, serial outputs

$340.00

Programmable temperature monitoring and acquisition device
Dust-Tight, waterproof, IP66
4- channel
RS-485
5V, 3.3V UART
0C to 40C operating ambient
-50C to +150C channels measurement range
ASCII/binary data stream. Fast and slow data output. Fast 25ms, 50ms, 75ms, 100ms. Slow 1sec to 254 sec.
Modbus RTU Protocol
Programmable with user thermistor, power dissipation coefficients and slow data stream period 1 to 254 seconds
Download link to Protocol spec and excel Protocol Communication Tool (access code is provided with the shipment)

Quantity:

Add To Cart

Programmable temperature monitoring and acquisition device
Dust-Tight, waterproof, IP66
4- channel
RS-485
5V, 3.3V UART
0C to 40C operating ambient
-50C to +150C channels measurement range
ASCII/binary data stream. Fast and slow data output. Fast 25ms, 50ms, 75ms, 100ms. Slow 1sec to 254 sec.
Modbus RTU Protocol
Programmable with user thermistor, power dissipation coefficients and slow data stream period 1 to 254 seconds
Download link to Protocol spec and excel Protocol Communication Tool (access code is provided with the shipment)

Programmable temperature monitoring and acquisition device
Dust-Tight, waterproof, IP66
4- channel
RS-485
5V, 3.3V UART
0C to 40C operating ambient
-50C to +150C channels measurement range
ASCII/binary data stream. Fast and slow data output. Fast 25ms, 50ms, 75ms, 100ms. Slow 1sec to 254 sec.
Modbus RTU Protocol
Programmable with user thermistor, power dissipation coefficients and slow data stream period 1 to 254 seconds
Download link to Protocol spec and excel Protocol Communication Tool (access code is provided with the shipment)
